The most trusted name in Precision Milling & Engraving Technology



OSAICNC  -THE PIONEERS OF MOTION CONTROL  -  A DIVISION OF PRIMA ELECTRO, TORINO, ITALY

osai2

    5 Axis Simultaneous for  a variety of Industry Verticals  (maximum 64 Axes)

    Linear, Circular, 3D Circular, Helical and Spline Interpolation

    EtherCAT or Mechatrolik Link, or Sercos full Digital Interface

    High Speed Machining (HSM)– Algorithms for Polynomial Interpolation

    Tool Center Point  (TCP)

    Volumetric Compensation (VC)

    Look Ahead and other features found only in high end CNC Control Systems.

    Embedded SoftPLC- Graphical Logic Development Environment

    Customizable Front End USER Screens/Interface with OSAI WIN NBI

    CANOpen Digital Field Bus for I/O Management

osai5


INDUSTRY APPLICATIONS INCLUDE:

METAL CUTTING& GRINDING-Precision Milling, Turning, Grinding, Engravingother Special Purpose Machine Tools&  Transfer Lines in Automotive, Aerospace, and General Engineering Industries.
Other metal cutting applications include Jewellery Industry, Medical, Dental
WOOD WORKING- Multi Process- Mult-Axis  High Speed Routing
STONE-   Engraving and cutting Stone- Marbles, Granite etc.
GLASS Working
SHEET METAL :PLASMA Cutting and WATER JET Cutting



OPEN ARCHITECTURE CNC SOLUTIONS:

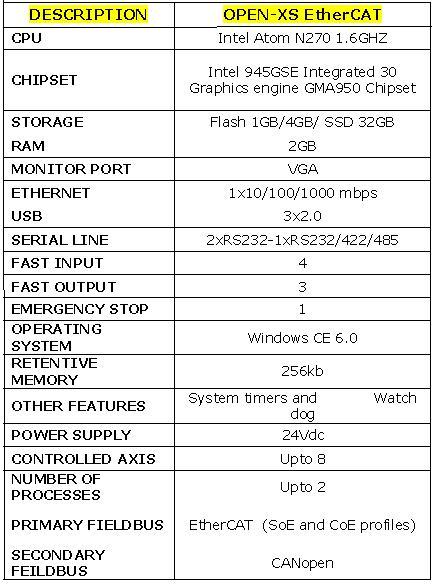

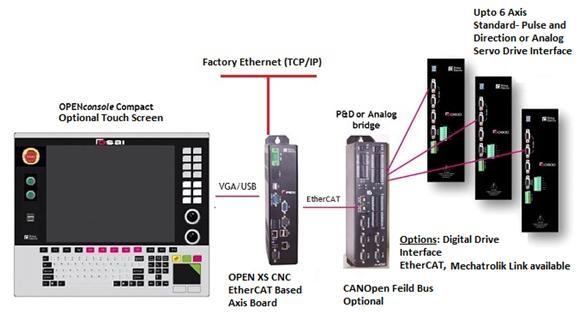

OPEN XS ETHERCAT CNC– ECONOMICAL   SIMULTANEOUS CNC UPTO SIX AXIS PLUS SPINDLE

osai8

osai9

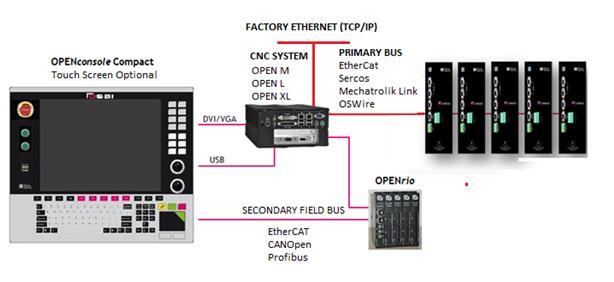

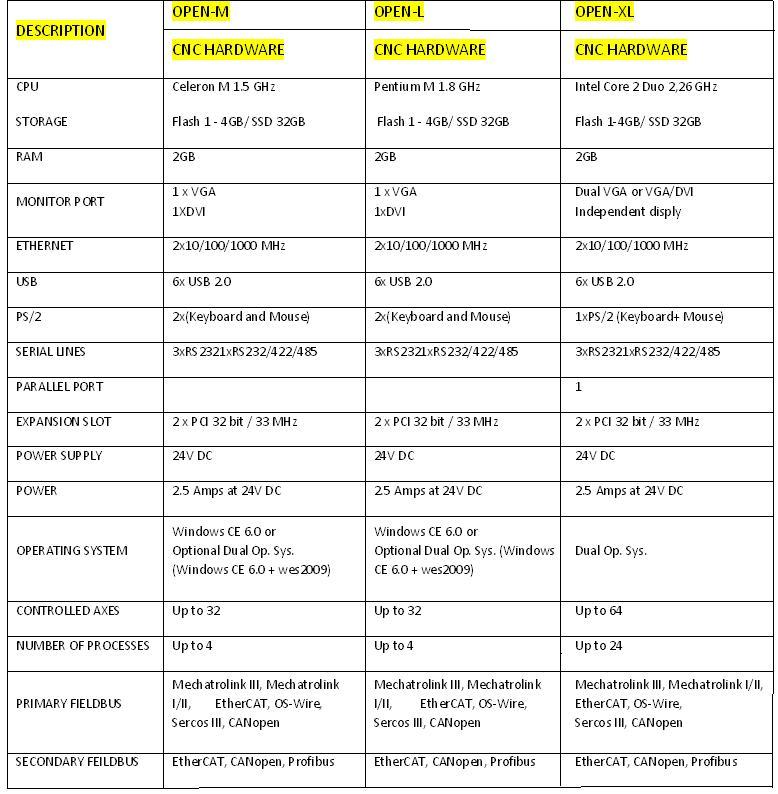

ADVANCED OPEN M,OPEN- L or OPEN- XL  – DIGITAL SIMULTANEOUS CNC


osai10


osai11

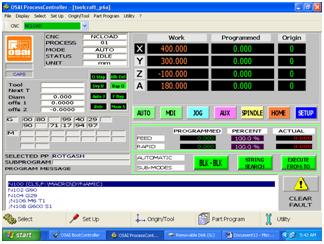

WIN NBI-  CUSTOMIZABLE WINDOWS BASED CNC FRONT END SOFTWARE

Win NBI developed by OSAI is designed for Front End Management of the CNC Machine Tool. It is Windows based and the user could configure the Screen based upon the Application. WinNBI can interconnect many CNCs on the FACTORY LAN and Screen Layouts can integrate data coming in from all CNCs on the NETWORK.

Additionally, the software is supplied with special Tools such as Digital Oscilloscope used for Dynamic Tuning of the machine tool.

osai12

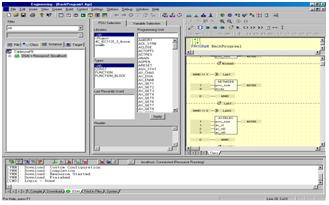

THE EMBEDDED SoftPLC

The SOFT PLC supplied with OSAI OPEN CNCs uses a graphical environment based upon IEC61131-3 and the machine logic is developed using Structured Texts.
The PLC Tool is designed with functions for debugging and utilities such as “changing on the fly”  and “warm start” of logic to speed up Commissioning.

osai12
